CupDream

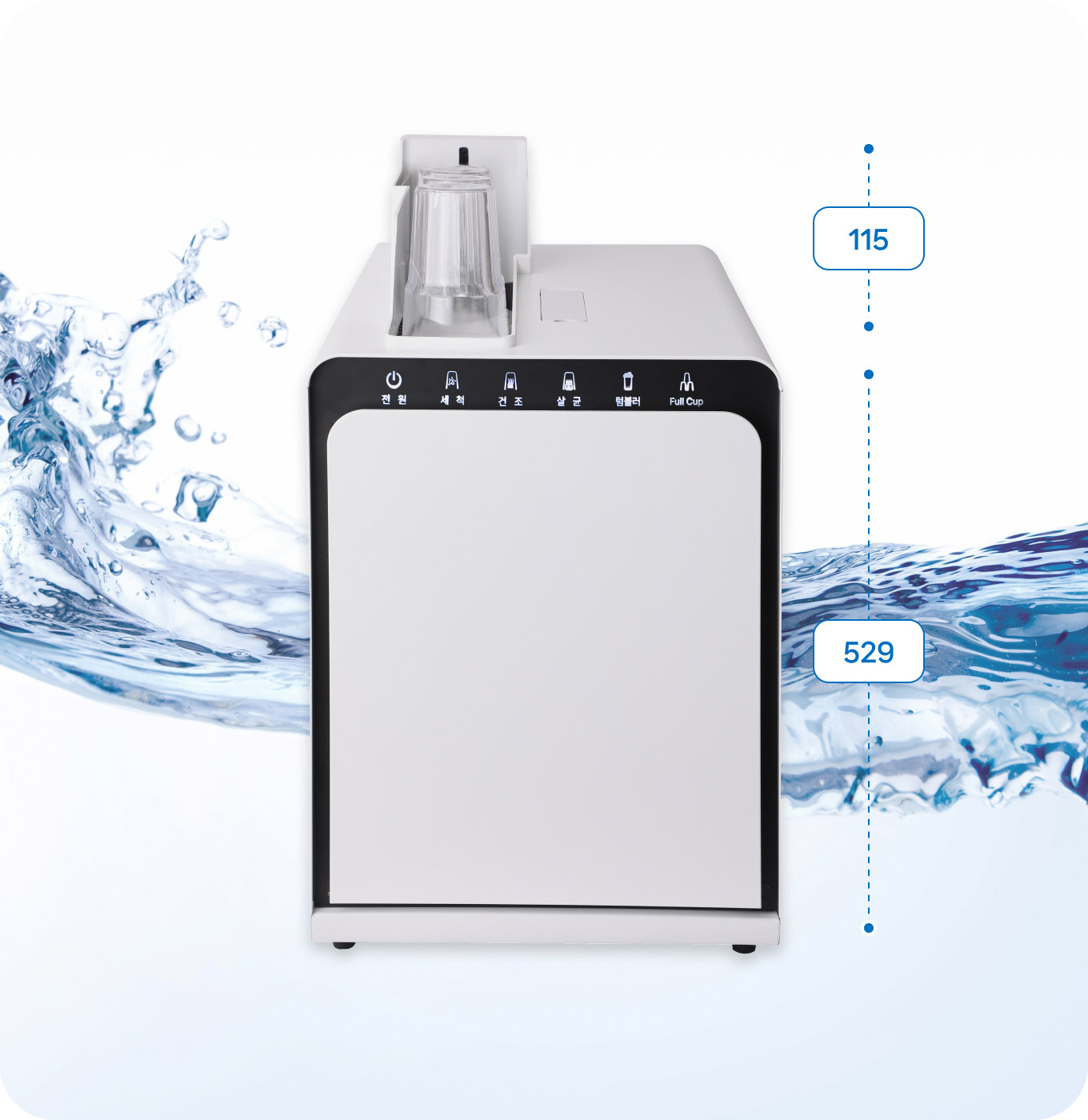

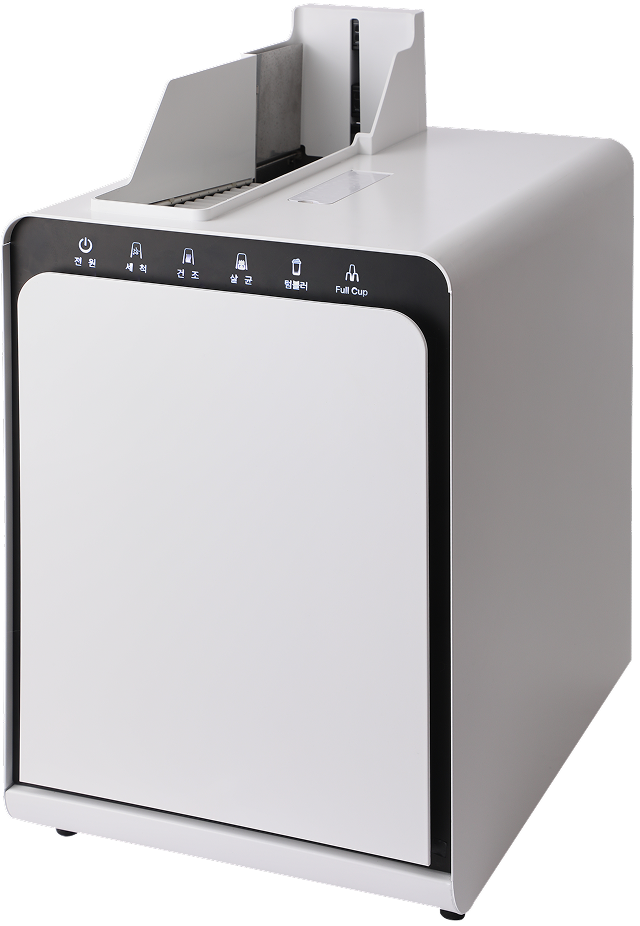

Automatic Cup Washer CupDream
- Dimensions
- 360(L)*527(D)*644(H)
- Power Rating
- AC220v, 1650w
- Washing
-
- Hot water wash (30-45°C)
- Wash time: 40 sec / 90 cups/hr
- Drying
- Hot Air Drying
- Sanitization
- UV Sanitization
- Key Features
-
- Fully automated wash, dry, and sanitize cycle
- Compatible with all reusable cups, mugs, and tumblers
- Removes lipstick stains and milk odors
- Storage Capacity
- 8-10 cups (depending on size)
- Demo Video
- https://youtu.be/42Xaaz5oyGQ
Product Diagram
- Auto Cup Detection Sensor
-
- Auto-sorts tumblers and regular cups
- Regular cups are auto-stored
- Tumblers are auto-dispensed after washing
- Status Display
-
- WASH : Washing in progress
- DRY : Drying in progress
- SANITIZE : Sanitizing in progress
- TUMBLER : Tumbler washing in progress
- FULL CUP : Storage full
- Cup Return Rail
-
- Place cup to auto-start wash cycle
- Built-in drain for leftover drinks
- Self-cleaning rail for constant hygiene
- Storage Compartment
-
- Roller system for various cup types
- Two-tier design for efficient storage
- Continuous UV sanitization
- Hot air removes all moisture
- Door
-
- Easy-open full-frame handle
- Auto-closing spring hinges
Key Performance
-
- Automated System
- Just place the cup for a fully automatic wash, dry, and sanitize cycle.
It also auto-detects and perfectly cleans tumblers.
-
- Auto-Cutoff Sensor
- When multiple cups are returned, a sensor ensures
they are washed one by one.
-
- UV Sanitization
- Sanitizes cups during storage for maximum hygiene.
-
- Automatic Rail Cleaning
- Auto-washes the return rail to remove stains and ensure cleanliness.
-
- Hot Air Drying
- Hot air removes moisture from cups and the machine's interior.
-
- Auto-Detection Sensor
- Auto-detects cup types for an optimal wash cycle.
-
- Instant Hot Water System
- Uses an instant supply of 30-45°C hot water for a hygienic wash.
-
- Built-in Drainage
- A convenient drain allows users to easily dispose of leftover drinks.
Automation System
A Convenient Automated System
No Need to Carry a Cup
-
Take and use a cup
from storage
- Convenient Use
- A freshly cleaned cup is
always ready
-
Return used cup
to the rail
- Easy Return
- Easy return with open design and a drain for leftover drinks
-
Automatic washing of
the returned cup
- Automatic Washing
- Auto-sorts cups, starts an immediate hot water wash, and a brush removes even lipstick stains
-
Washed cup moves
to storage
- Auto-Transfer System
- 3-Stage Tilting System
-
Drying & sanitizing
in storage
- Drying & Sanitizing
- Auto hot air drying & UV sanitization
Core Technology
Hygiene and Convenience Combined
CupDream's Core Technology
An instant heater provides high-temp water, perfectly cleaning the cup's interior, exterior, and even lipstick stains.
-

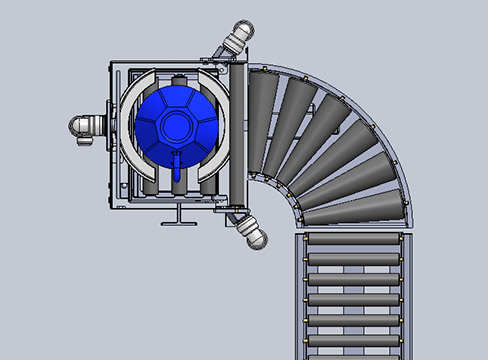

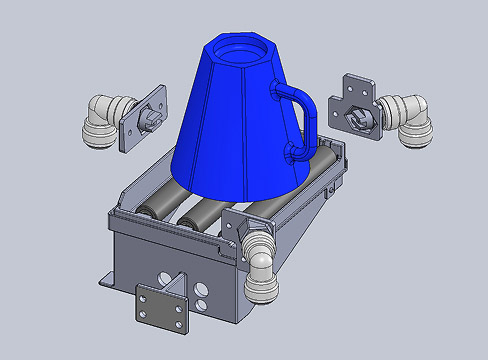

- Exterior Cup Washing
- As the cup moves, three 120-degree nozzles provide a perfect, thorough clean.
-

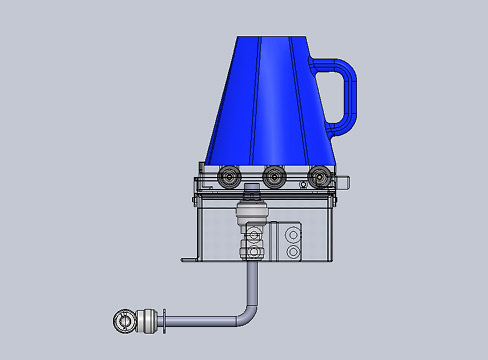

- Interior Cup Washing
- A powerful fan-shaped nozzle
perfectly cleans the cup's interior.
-
- Lipstick Stain Removal
- The cup moves against a brush,
removing lipstick stains.

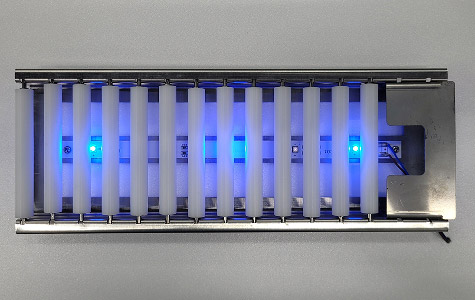

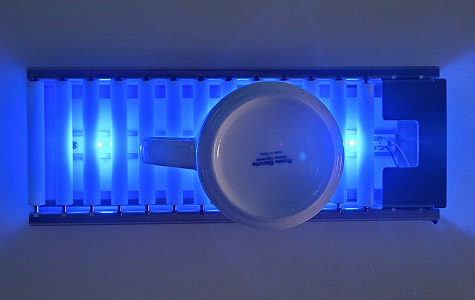

UV Sanitization
- UV lamp turns OFF when door is open
- UV lamp turns ON when door is closed (15 min cycle)
- Sanitizes for 15 minutes every 5 hours during storage

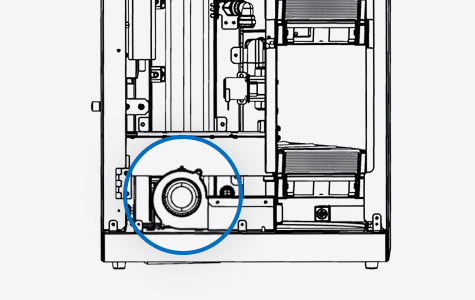

Hot Air Drying
- Hot air fan runs for 30 min after each wash
- A mica heater and fan circulate hot air
- to completely dry all cups.

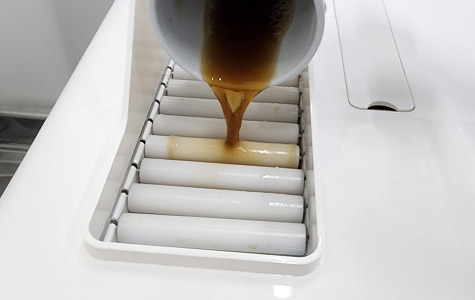

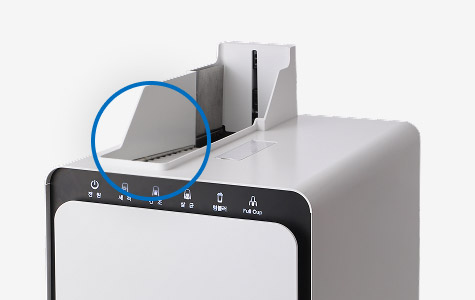

Drainage Line &
Automatic Rail Cleaning
- The return rail has a drain to dispose of leftover drinks
- Leftover drinks are removed via a connected drainage pipe
Application Example
A Cup Washer for All Cup Shapes and Sizes
Scan the QR code for a detailed cup washer video.
-

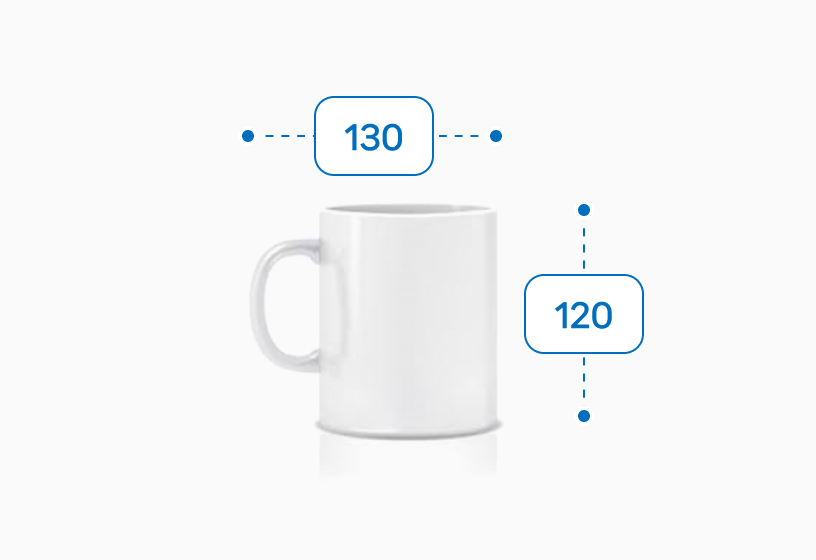

- Mug
-
- Cup Size : Up to 130mm * 120mm
- Storage Capacity : 8-10 cups
- Watch Video: Glass Cup
-

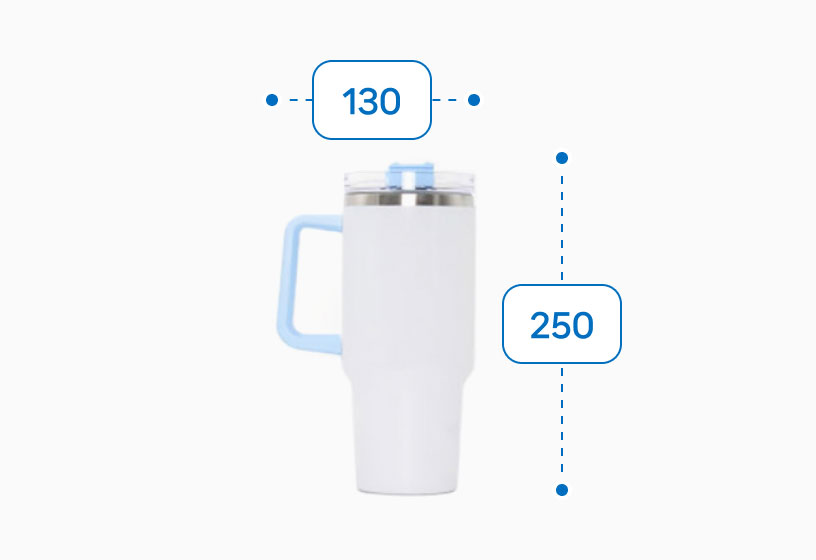

- Tumbler
-
- Cup Size : Up to 130mm * 250mm
- Watch Video: Mug
-

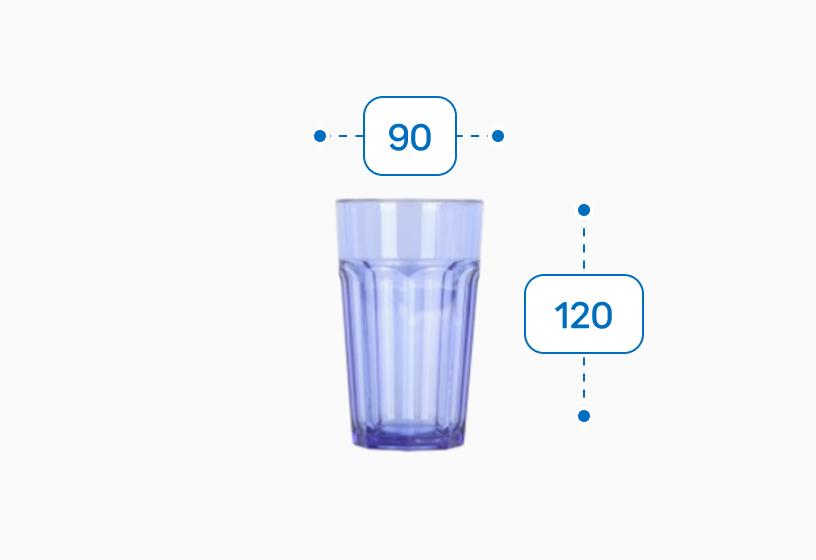

- Reusable Cup
-
- Cup Size : Up to 90mm * 120mm
- Storage Capacity : 10 cups
- Watch Video: Mug
Washing Test Report
Incredible Performance,
Verified by an Authorized Lab
- Washing Test Report
- Testing Lab : Korea Conformity Laboratories (KCL)
